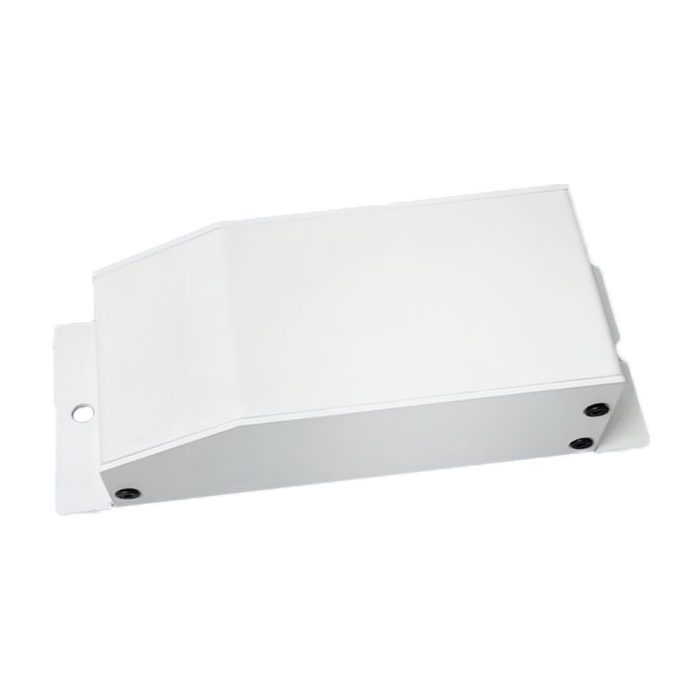

The PTE-SERIES is an electronic Class 2, phase dimmable LED driver with a low profile aluminum case making it the perfect choice for tape lighting, kick/cove lighting, under cabinet lighting and multiple other residential and commercial lighting applications. The UL Listed enclosure includes a wiring compartment with two ½” knockouts for easy-installation, eliminating the need for a separate junction box. The driver features auto reset, over current and short circuit protection as well as an efficiency over 90% resulting in low operating case temperature. The PTE-SERIES is phase dimmable down to 1% with both leading edge TRIAC dimmers.

120VAC Input | SINGLE Channel 12 or 24VDC Output | LISTED Enclosure with Junction Box

  • Installation: Surface Mount Junction Box with Multiple ½” Knock-Outs
  • Driver Type: Class 2 Single Channel

  • Dimming: Phase Dimmable Down to 1% with Leading Edge MLV TRIAC Dimmer

  • Input Voltage:120VAC,50/60Hz

  • Output Voltage:12VDC or 24VDC

  • Environmental: Dry and Damp
