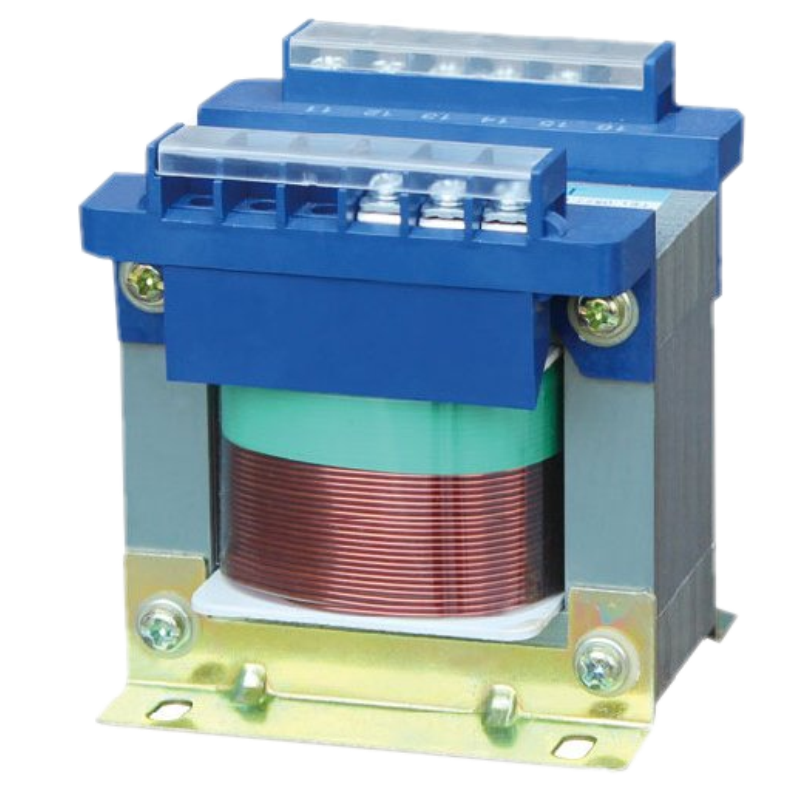

Pulse hot press transformer | low voltage high current control transformer parameters
Power: 0.5-5kva
Input voltage: 36V, 60V, 110V, 220V, 380V, etc
Frequency: 50 / 60Hz
Output voltage: 0.8V, 1.0V, 1.1V, 1.2V, 1.4V, 1.6V, 1.7V, 2.0V, 2.2V, 2.5V, 3.0V, meeting the requirements of different users
Core material: dw470, Z10 and other high-quality silicon steel sheets
Insulation resistance: ≥ 500m ω
Dielectric strength: 2000V / min without breakdown
Insulation class: Class F

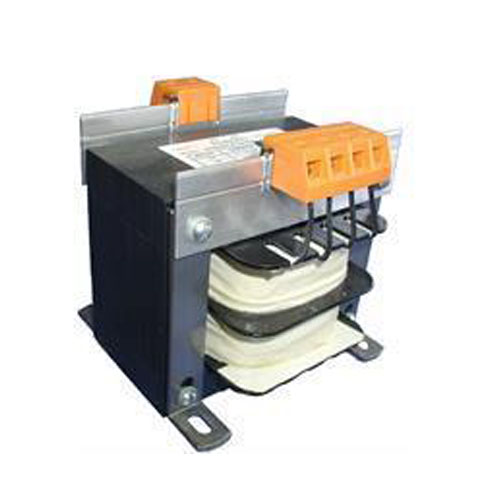

The manufacturers of pulse hot press transformer and touch screen hot press transformer design and produce pulse transformer and touch screen hot press transformer, which use the magnetic field and performance of silicon steel sheet iron core of the transformer to make the input sine wave voltage into a narrow pulse output voltage transformer, The structure of pulse transformer is that copper bars with different interfaces are sleeved on the primary winding coil to achieve the effect of low voltage and high current output. Pulse high current transformer is widely used in various hot press equipment control, such as hot pressing screen machine, pulse hot press and other equipment. Its voltage is 0.8V, 1V, 1.2V, 1.3V, 1.4V, 1.5V, 1.6V, 1.7V, 1.8V, 2V, 3V and other low-voltage and high current transformers.Applicable industries: pulse hot press special transformer | hot press control transformer | touch screen hot press transformer is widely used in mobile phone manufacturers, touch screen manufacturers, computers, printers and other manufacturers
| Model | Overall dimension | Installation dimension | |||
| B max | D max | E max | A | C | |
| BK25~50 | 78 | 68 | 87 | 52±0.5 | 52±0.5 |
| BK-100 | 84 | 82 | 94 | 64±0.5 | 64±0.5 |
| BK-150 | 96 | 98 | 106 | 81±0.5 | 81±0.5 |
| BK-200 | 96 | 105 | 106 | 88±0.5 | 88±0.5 |
| BK-250 | 96 | 108 | 106 | 91±0.5 | 91±0.5 |
| BK-300 | 120 | 117 | 114 | 97±0.5 | 97±0.5 |
| BK-400 | 132 | 124 | 124 | 104±0.5 | 104±0.5 |
| BK-500 | 132 | 124 | 124 | 104±0.5 | 104±0.5 |
| BK-700 | 132 | 134 | 124 | 114±0.5 | 114±0.5 |
| BK-1000 | 150 | 153 | 142 | 128±0.5 | 128±0.5 |
| BK-1500 | 192 | 147 | 177 | 122±0.5 | 122±0.5 |
| BK-2000 | 192 | 167 | 177 | 152±0.5 | 152±0.5 |
| BK-3000 | 215 | 220 | 240 | 165±0.5 | 165±0.5 |
| BK-5000 | 260 | 220 | 280 | 240±0.5 | 240±0.5 |
