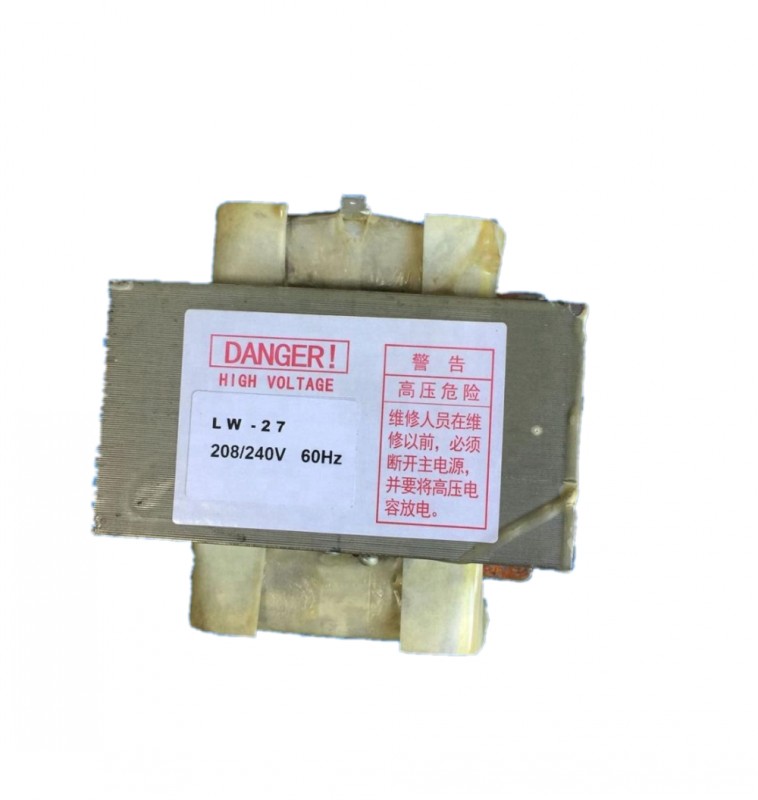

Industrial Microwave Transformers

  • Product name:Industrial microwave transformers
    input Rated voltage:230VAC,220VAC,240VAC
    Microwave Parts Electrical high voltage transformer for microwave oven
    Specifications for high voltage transformer

    Product Name High Voltage transformer for microwave oven components
    Power From 500w to 1500w
    Rated Voltage 110V, 120V, 220V, 230V or customized
    Rated Frequency 50Hz or 60Hz
    Coil material Cu-Cu / Cu-Al / Al-Al
    High Voltage 2000v-2600v
    Filament Voltage 3.0v-3.5v
    Mounting Size Customized
    Usage:used in microwave oven or microwave equipment
    Cooling way:Air Cooled
    Filament voltage:2.5V-3.5V
    Supply Ability
  • It is applicable to various high-temperature industrial microwave equipment (500-1200 degrees), and conventional microwave drying / drying equipment works continuously for 24 hours


Industrial microwave transformers:

High voltage transformer is used for converting low frequency low voltage low frequency high voltage electromagnetic induction equipment.When a winding through the alternating current transformer to produce alternating magnetic field, through the induction effects of alternating magnetic field, the secondary winding is also corresponding to produce alternating magnetic field produced by ac electromotive force, high and low voltage of secondary winding and secondary winding turn ratio, the voltage is proportional to the number of turns, the main effect of high pressure is necessary for to convert low voltage to high voltage insulation are particularly important in the production process, many manufacturers of substandard products mainly reflects on insulation processing, completes the insulation is the key of the high voltage transformer production.

Industrial microwave 1500 w high voltage transformer, and 1500 w filament transformer connection work, matching Witt 1500 w magnetron (2 m463k / 2 m463j), usually to adjust in the routine use of filament transformer to adjust the action of microwave power.

Product parameters:

power primary voltage secondary high pressure No-load current No-load power frequency material weight
1000W 230V 2290V 12A 160W 50HZ copper 15KG

Appearance size: 162 mm * 170 mm * 170 mm wide,
Floor size: 162 mm * 120 mm wide, long
Fixed orifice size: 135 mm * 135 mm

Scope of application:Suitable for all kinds of high temperature industrial microwave equipment (500-1200 degrees), conventional microwave drying/drying equipment 24 hours of continuous work for a long time.


There are 72 transformers in each box and 18 transformers in each layer, a total of 4 layers. A box of transformers will be loaded on a pallet.
