MXAC Series

MAgnetic Dimmable LED Drivers MXAC Series is a dimmable, magnetic, hard wire power supplies and designed for lighting application where is the output limitation is 300W per circuit. It can supply 12V / 24V AC for any other purpose. The boost tap on the primary side compensates a wire drop voltage on a long run. Primary manually reset circuit breaker on all products as a standard. Small dimensions and weight saves space and lowers an installation cost. The outdoor enclosure rated NEMA 3R or IP24 and can be used of indoor applications, as well.


  • Wattage: 100W, 150W, 200W, 250W, 300W, 500W, 600W, 750W, 1000W,1200W and 1500W
  • Output Voltage: 12VAC / 24VAC Double or Multiple Circuit.
  • Input Voltage: 120V 60Hz, 277V 60Hz
  • All: Dimmable, Outdoor/indoor use, NEMA 3R rated, Boost tap, Primary breaker, Black powder coated steel enclosure.
  • Perfect solution for Low Voltage Lighting applications Dimmable with most low-voltage dimmer

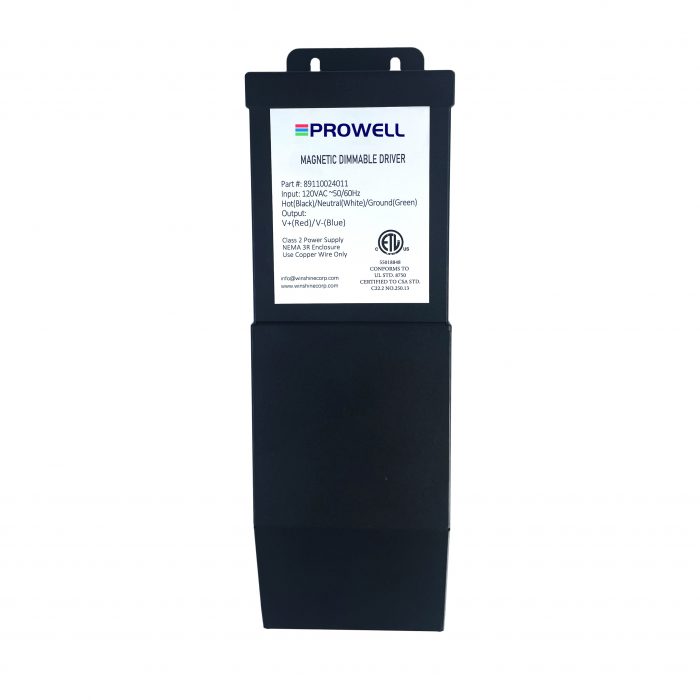

Magnetic Dimmable LED Drivers MXAC Series

Led Power Supplies

The MXAC-SERIES is a multi-tap magnetic dimmable transformer making it the perfect choice for landscape and other indoor or outdoor lighting applications. Encased in a high-quality metal enclosure that includes multiple ⅞” knock-outs for easy installation, each unit is equipped with push-to-reset breakers, one on each output, to protect both the driver and the load. All of our magnetic transformers are phase dimmable with any standard leading edge MLV TRIAC dimmer.


  • 120VAC Input | SINGLE – Channel 12 or 24VAC Output
  • Installation: Integrated Junction Box with Multiple ⅞“ Knock-outs
  • Driver Type: Multi-Tap
  • Dimming: Phase Dimmable with Leading (Forward) Edge MLV TRIAC Dimmer Only Input Voltage: 120VAC, 50/60Hz
  • Output Voltage:1 2VAC / 24VAC Environmental: Dry and Damp





MX100AC 100W 120VAC 12V/24 AC
MX150AC 150W 120VAC 12V/24 AC
MX200AC 200W 120VAC 12V/24 AC
MX250AC 250W 120VAC 12V/24 AC
MX300AC 300W 120VAC 12V/24 AC
MX500AC 500W 120VAC 12V/24 AC
MX600AC 600W 120VAC 12V/24 AC
MX750AC 750W 120VAC 12V/24 AC
MX1000AC 1000W 120VAC 12V/24 AC
MX1200AC 1200W 120VAC 12V/24 AC

Led Power Supplies
